KF-G42
Kafan

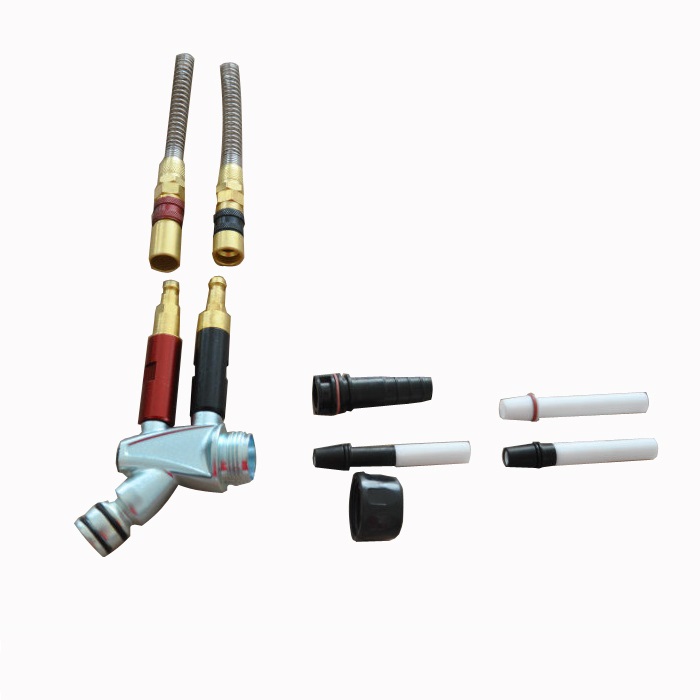

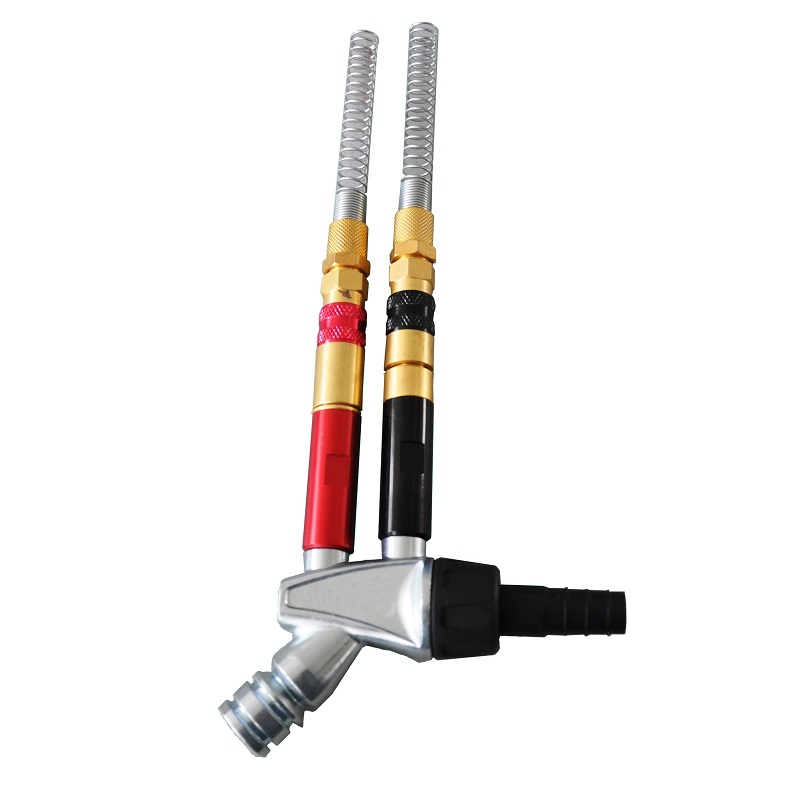

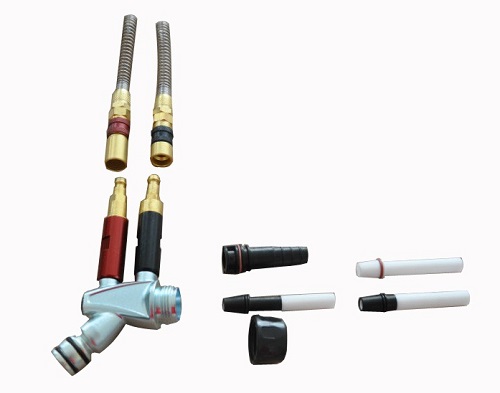

Powder Injector
The powder coating injector installed in the powder coating equipment is used to convey powders from powder hopper to the powder spray gun.
All the connection of the powder injector is plug-in type, which can be assembled or disassembled without any special tool, allows easy and quick cleaning.
1. Creates a large quantity of powder feed with less compressed air
2. 135°open angle of the powder injector that reduces wear consumption
3. Makes smooth and constant powder flow for long time use
4. Suitable for any powders, any hoppers or powder feeding center.
5. Same quality and function with IG06 powder injector, can be after-market replecement.

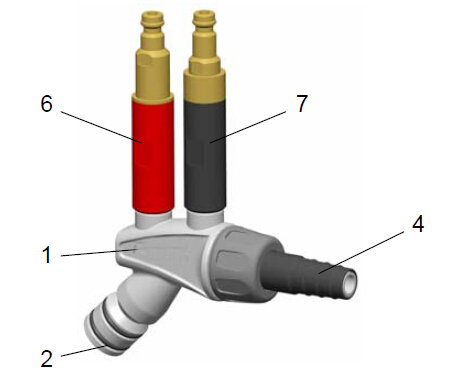

1 Injector housing 6 Check valve unit (conveying air)
2 Powder hopper connection 7 Check valve unit (supplementary air)
4 Powder hose connection

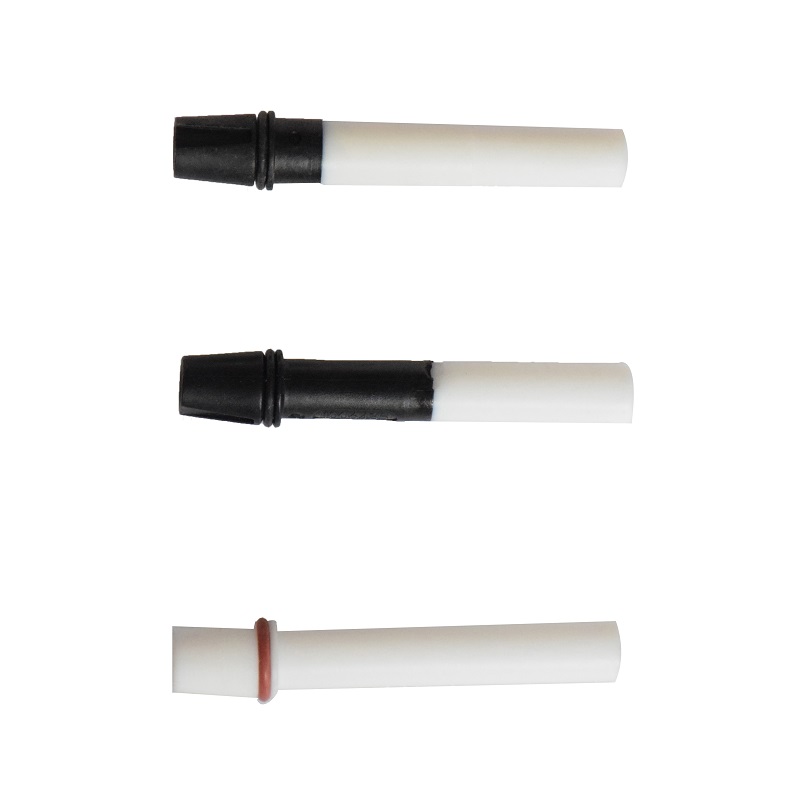

Maintenance is limited for the powder injector pump, just the regular exchange of the insert sleeve.
