KF-X1-V-2
Kafan
| Quantity: | |
|---|---|

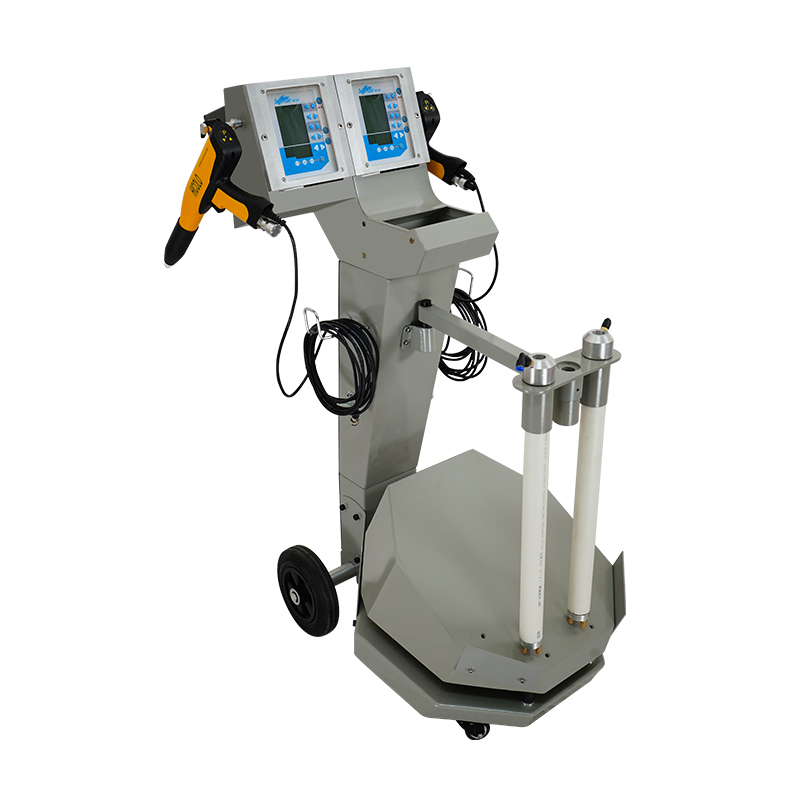

The powder coating equipment combines double guns and controllers that allows two operaters painting at the same time, which increase efficiency when coating large workpieces or requires higher production.
The box feed type allows directly conveying powders from original powder carton to the gun for spraying, without hopper it features quick operation during color changes.

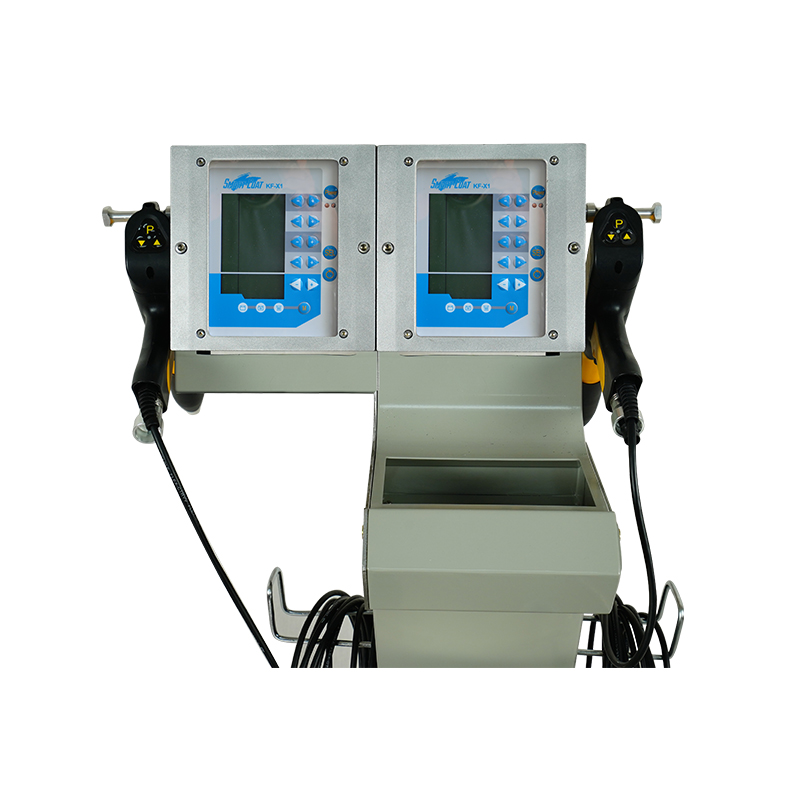

Full Digital Control, LCD Display
Powder Flow and Air Supplementary is Precisely Controlled by Digital Valve Technology
Independent Control of Gun Voltage and Current
A total of 23 application programs
3 Pre-set application programs, flat parts coating, corner coating and re-coating, one touch key to handling different shapes of workparts.
20 Customized Programs Library can be created and stored. Each part and powder will recieve optimal operation data. you can instantly call them back for use the next time you coat.
Long-lasting 100kv spray gun maximizes the electrostatic charging that saves materials.
Lightweight and ergonomical design enables operators to accomplish jobs at ease.
Manual guns' back cover with integrated controls to adjust powder flow rates and select application programs
All the parts for the KF-X1 powder coating system is best configuration.
The grounded powder hose embeded with carbon trips is designed for anti-static, smoothly convey the powders from the hopper to the gun.
Powder injector enables easily assembling to the machine only by manual, and gives uniform powder output for higher coating quality.
Comes with full array of nozzle assortment to optimize your spraying effect, including flat nozzle, round spray nozzles with different size deflectors, and extension nozzles.
The KF-X1 offers constant powder outputs for more uniform finish, whose excellent corner penetration leads to best coverage, especially for complex auto parts. The highest transfer efficiency saves powder a lot and results in lower operating costs
| Model | KF-X1 |
| Power range | 220V/110V (can be customized) |
| Frequency | 50HZ/60HZ |
| Temperature range in use | -10 ℃+50 ℃ |
| Powder Gun | |
| Gun weight | 50kg |
| Rated output voltage | 24VDC |
| Maximum output current | 180Ua(max) |
| Maximum output voltage | 0-100KV ( adjustable) |
| Maximum powder injection | 600g/min |
| Polarity | negative (-) |
| Pneumatic data | |
| Maximum input-air pressure | 10kg/cm |
| Optimum input-air pressure | 6kg/cm |
| Minimum input-air pressure | 4kg/cm |
| Maximum water vapor content or compressed air | 1.4g/N m3 |
| Maximum oil vapor content of compressed air | 0.1ppm |
| Maximum compressed-air consumption | 13.2 m3/h |
Based on Kafan 10 years design and manufacture technology, kafan will meet all of your powder coating demands, whether single color application or frequently color change, whether for big production or lab use.
Depending on your budget, speciality, you can choose all intelligent powder coating machine or economical practical type.
Kafan powder coating spray units delivers high performance and efficiency for both regular shape parts and complex shape parts. Save cost and improve quality.
Kafan powder coating system enjoys a large scale of metal coating jobs, typically for car rims, alloy wheels, steel plates, aluminum profiles, bike frames, motorcycle parts, brake calipers, fence and rails, security door and windows, LPG tank, etc.
