KF-X1 Double Spray Powder Coating System

- Double control system for double guns spraying.
- Well-known model in worldwide market.
- Easy and precise control of electric and pneumatic parameters.
- Budget-saving and reliable powder coating solution.
- Ready to ship, spare parts always available. 1 year warranty time.
  • KF-X1-2

  • Kafan


KF-X1 Double Systen Powder Coating Equipment

The powder coating system combines double guns and controllers that allows two operaters spraying at the same time, which increases efficiency when coating large workpieces or achieving higher production.

The fluidizing hopper type is suitable for single color application, powders are completely fluidized and will have minimal contamination stored in this well-sealed container, and easily conveyed to the gun with a high degree of uniformity and consistency.

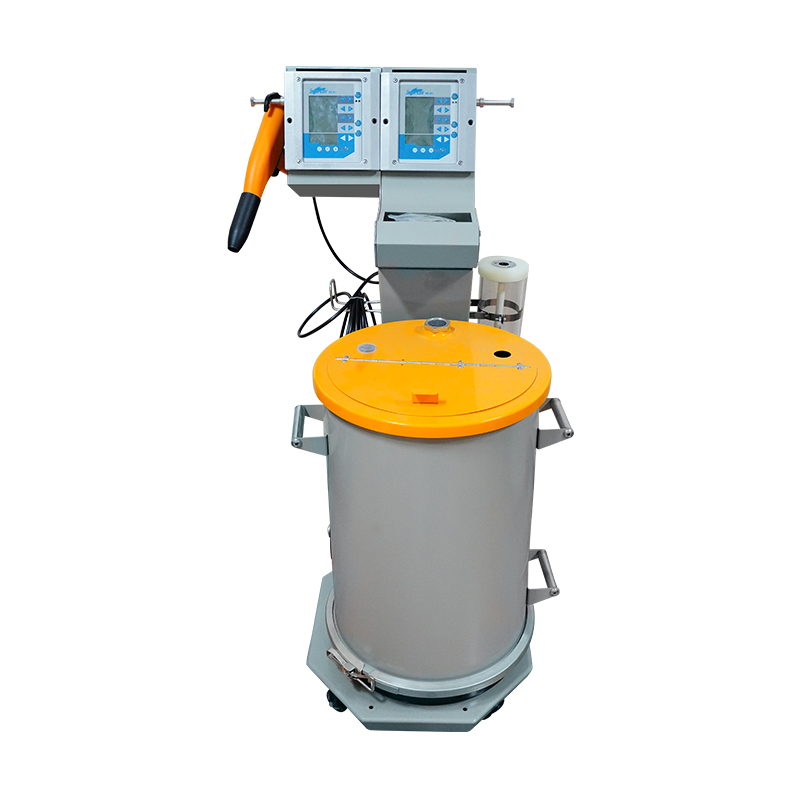

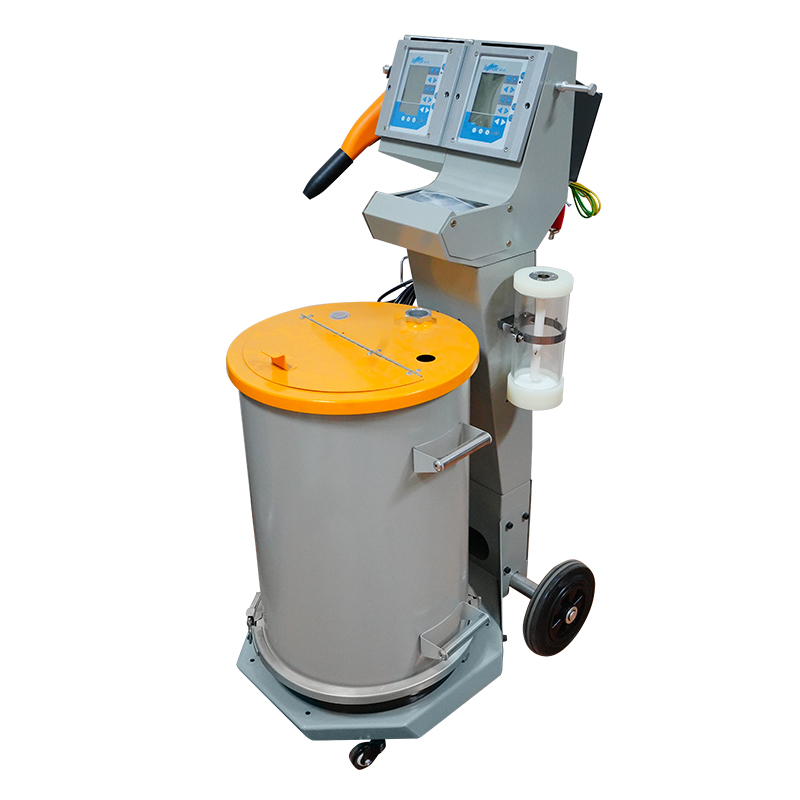

kf-x1 powder coating system

KF-X1 Powder Coating Gun Control Features

  • Full Digital Control, LCD Display

  • Powder Flow and Air Supplementary is Precisely Controlled by Digital Valve Technology

  • Independent Control of Gun Voltage and Current

  • A total of 23 application programs

  • 3 Pre-set application programs, flat parts coating, corner coating and re-coating, one touch key to handling different shapes of workparts.

  • 20 Customized Programs Library can be created and stored. Each part and powder will recieve optimal operation data. you can instantly call them back for use the next time you coat.

powder coating gun system

KF-08 Electrostatic Spray Gun Features

  • Long-lasting 100kv spray gun maximizes the electrostatic charging that saves materials.

  • Lightweight and ergonomical design enables operators to accomplish jobs at ease.

  • Manual guns' back cover with integrated controls to adjust powder flow rates and select application programs

  powder coating spray gun

KF-X1 Powder Coating System Spare Parts

  • All the parts for the KF-X1 powder coating system is best configuration.

  • The grounded powder hose embeded with carbon trips is designed for anti-static, smoothly convey the powders from the hopper to the gun.

  • Powder injector enables easily assembling to the machine only by manual, and gives uniform powder output for higher coating quality.

  • Comes with full array of nozzle assortment to optimize your spraying effect, including flat nozzle, round spray nozzles with different size deflectors, and extension nozzles.

  powder coating parts

KF-X1 Powder Coating System Customer Feedback

The KF-X1 offers constant powder outputs for more uniform finish,  whose excellent corner penetration leads to best coverage, especially for complex auto parts. The highest transfer efficiency saves powder a lot and results in lower operating costs

KF-X1 Powder Coating System Technical Data

Model KF-X1
Power range 220V/110V (can be customized)
Frequency 50HZ/60HZ
Temperature range in use -10 ℃+50 ℃
Powder Gun
Gun weight 50kg
Rated output voltage 24VDC
Maximum output current 180Ua(max)
Maximum output voltage 0-100KV (  adjustable)
Maximum powder injection 600g/min
Polarity negative (-)
Pneumatic data
Maximum input-air pressure 10kg/cm
Optimum input-air pressure 6kg/cm
Minimum input-air pressure 4kg/cm
Maximum water vapor content or compressed air 1.4g/N m3
Maximum oil vapor content of compressed air 0.1ppm
Maximum compressed-air consumption 13.2 m3/h

Why choose kafan powder coating equipment?

  • Based on Kafan 10 years design and manufacture technology, kafan will meet all of your powder coating demands, whether single color application or frequently color change, whether for big production or lab use.

  • Depending on your budget, speciality, you can choose all intelligent powder coating machine or economical practical type.

  • Kafan powder coating spray units delivers high performance and efficiency for both regular shape parts and complex shape parts. Save cost and improve quality.

  • Kafan powder coating system enjoys a large scale of metal coating jobs, typically for car rims, alloy wheels, steel plates, aluminum profiles, bike frames, motorcycle parts, brake calipers, fence and rails, security door and windows, LPG tank, etc.
