Powder Coating Start-up Equipment Package

Suitable for powder coaters start their small business with quick and easy operations. Kafan's powder coating equipment is designed to improve you application quaity and production efficiency.
  • Kafan

  • Powder Coating Equipment Package


Powder Coating Start-up Equipment Package

The small scale powder coating equipment package saves space while offering a professional application, it is suitable for small parts and not large productions, such as motorcycle parts, car rims, bike parts, engine parts, metal accessories, ideal for powdercoat business starters.

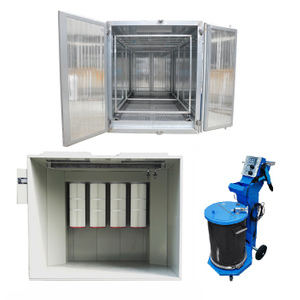

Small Powder Coating Equipment Package Including:

  • KF-X1 Box Feed Powder Coating Gun

  • KF-1115 Small Powder Coating Booth

  • KF-1688 Electric Powder Coating Oven

powder coating start-up package

KF-1115 Powder Coating Spray Booth

Comes with 2 pcs quick-release type cartridge filter, 0.75 powerful fan motor, reaches to 98% powder recovery rate, allows fast cleaning and color change. Simple operation and maintenance, energy-saving, budget-saving, limited space occupy.

Working Dimension:   Width1000*Depth1000*Height1500mm (3.2ft * 3.2ft *4.9ft)

Overall Dimension:     Width1200*Depth1200*Height1900mm (3.9ft *3.9ft *5.9ft)

Voltage:   220V/380V/410V, can be customized

Cartridge Filter Material:    100% polyester

Air Consumption:   805-1677m^3/h


KF-1688 Powder Coating Curing Oven

Kafan powder coating oven provides uniform distribution of warm air for the parts by a 0.55kw fan motor, resulting in a quality finish. Heat by electricity, energy-saving and environmental friendly. heating time and fan motor work, rapidly raise the required temperature in a short time, easy and efficiency.

Worksize dimensions(mm): 1000width x 845 depth x 1600 height (2.77ft * 2.77ft *5.25ft)

Overall dimensions(mm):     1400 width x 1100 depth x 2200 height (4.59ft * 3.6ft * 5.9ft)

Power supply:     Electric/ 6.5kw, Votage: 110V/220v(50-60hz)

Warm-up time:    15-30 min. (180° C), max. 250° C;  Temperature stability: < ± 3-5°C

powder coating oven

KF-X1 Professional Powder Coating Gun:

KF-X1 intelligent powder coating gun use advanced technology that easily powder coats corners and complex parts, precisely set & read technical parameters thanks to the digital valve, ensure application quality., based on 10 years experienced, it requires less efforts to do powder coating jobs.  Box feed powder coating gun allows multi color application with more easier operation.

            powder coating equipment

Size and special requirements of powder coating equipment can be customized to meet your actual application.
