Compact Manual Powder Paint Plant

This powder paint plant is specially designed for manual coating of heavy or long length parts. The system ensures high requirement coating and low budget based on manual batch operation
Availability:

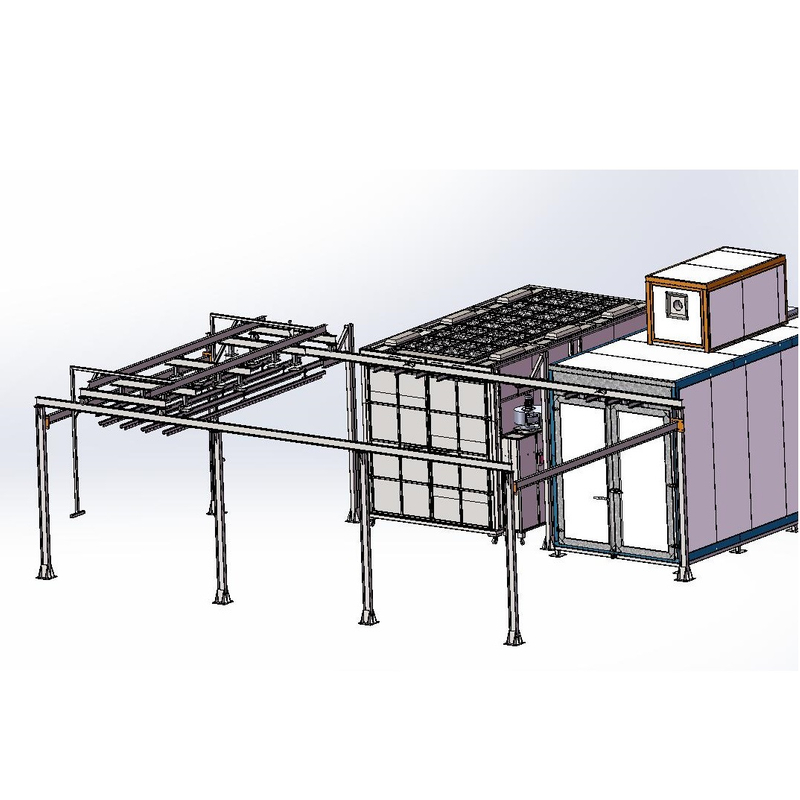

Compact Manual Powder Coating Plant

  1. This compact powder coating plant is specially designed for our Ireland customer that suits for their limited factory space.

  2. Manual-pull Overhead Track System allows transporting heavy workparts in batches while reduce manual efforts and ensures production efficiency

  3. Walk-in powder coating booth allows operators enters the booth for precise powder spraying operation, while ensures no powder overspray escape to your workshop.

  4. The powder spray booth configured with double filter stages for highly-efficient powder recovey, as well as ensures dustless working environment

  5. Powder coating is by manual spray system, which offers more precise operation that automatic line can not achieve, especially for handling objects in complex shapes.

  6. This powder coating oven designed wth top tracks allows batch conveyed workparts entering for powder curing., which can be heated by electric, gas or diesel as required.

  7. A circulation fan cycles hot air uniformly and keeps even temperature in the chamber. Our powder coating ovens features quck-heating, energy-saving, reducing operating cost and curing more parts everyday.

aQQ图片20210115094319

Powder Coating Plant

QQ图片20210115094053

Walk-in Spray Booth

QQ图片20210115094142

Spray Booth Recovery Unit

QQ图片20210115094305

Powder Painting Gun

QQ图片20210115094118

Curing Oven

bQQ图片20210115094215

Track System


Powder Coating Plant Technical Data

Powder Coating Gun

Model
COLO-191S
Voltage
110V/220V
Operating frequency
50-60 Hz
Input power
50w
Spray Gun
100kv
Control
Digital Valve
Display
LCD
Powder Feed
60lbs Hopper Type


Powder Spray Booth

Type Walk-in
Inner Size L7m x W3m x H3m
Opening Size W3m x H3m
Material SPCC/t=1.5mm, with door
Bottom Frame 8# square tube
Booth Inner Frame 4# square tube
Recovery System Filter Cartridge (16pcs)
Fan Motor 7.5kw, 2sets
Air Flow 9500m^3/h


Powder Coating Oven

Type Electric
Working Dimension Width 3m x Height 3m x Depth 7m
Control PLC
Insulation
t=100mm
Heating Time 15-30min
Heating Temperature 160-200 degree
Fan Motor 1 set
Air Flow 12000-14000m^3/h
